PID 616210LF – SonaSwitch® Mini-S Ultrasonic Sensor 1″ – 12, RoHS

$88.60 / per piece

The SensComp SonaSwitch® Series MINI-S electrostatic ultrasonic Sensor system provides a complete sensor solution to simplify your product design and packaging.

Download the Specification Sheet for full details.

Price Schedule

1-9 pcs: $88.60 ea.
10-24 pcs: $86.20 ea.
25-49 pcs: $85.05 ea.
50-99 pcs: $80.65 ea.
100-249 pcs: $76.20 ea.

250 pcs: Contact us for a quote

Out of stock

Contact SensComp to be notified of lead time

The SensComp SonaSwitch® Series MINI-S electrostatic ultrasonic Sensor system provides a complete sensor solution to simplify your product design and packaging.

Features

  • 50 KHz Electrostatic Ultrasonic sensor with Integrated SMT Electronic Circuitry
  • Two (2) Independent Push-button Settable Digital Outputs (Outputs are NPN Open Collector)
  • Outputs and Range LED Indications
  • Ranges from 1” to 12”, 6” to 20’, or from 12” to 40’
  • Temperature Compensated Switch Point Settings

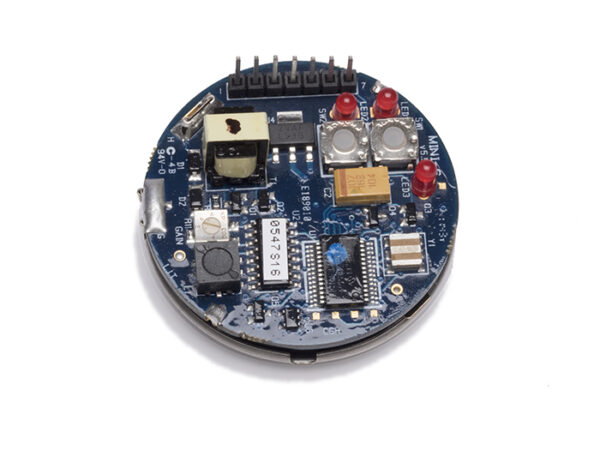

The SonaSwitch® MINI-S Sensor provides a total system in a compact package, containing an ultrasensitive electrostatic ultrasonic sensor and supporting circuitry to provide two (2) independent outputs, each output settable to indicate the detection of a target at a distance between 1 inch to 12 inches, 6 inches to 20 feet, or between 12 inches to 40 feet away. The SonaSwitch® MINI-S can be externally triggered, or continually sense at a 10 Hz rate. The SonaSwitch® MINI-S is insensitive to temperature, humidity, and pressure changes. It can also withstand high audio and EMI/RFI levels.

Download the Specification Sheet for full details.

Available Accessories…
